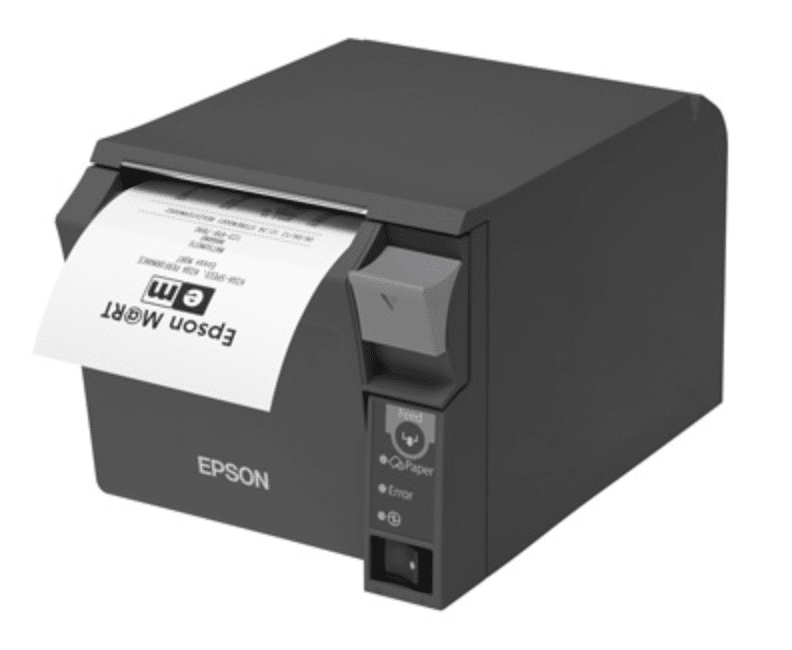

Epson TM-T70II-002 Thermal Receipt Printer - USB & Parallel. Epson Dark Gray. Incl PSU, IEC and Parallel cable

The TM-T70II is a reliable thermal receipt printer that can be fully operated from the front, thanks to its front paper loading. With a small footprint, and accessible button controls, it conveniently sits under your counter, while its fast 250mm per second print speed and margin-less printing allow you to serve your customers quickly ? without having to replace paper rolls quite so often.

What’s in the Box

  • Thermal Paper Roll x 1
  • Waterproof power button cover
  • Control panel sheet for vertical installation
  • 58mm width paper guide
  • External power supply (Model: PS-180)
  • CD-ROM (Drivers, Utility Software, Manuals)
  • Setup guide

$520.00 + GST

SKU 1EP1-TMT70II002 Category Vendor SKU: C31CD38002
PRINTER
PRINT METHOD Thermal line printing
PRINT RESOLUTION 180 x 180 dpi
PRINT FONTS (True Type) Font A: 12(W) x 24(H) mm
Font B: 9(W) x 17(H) mm
COLUMN CAPACITY (A, B) 80mm: 42/56
CHARACTER SIZE Font A: 1.41 x 3.39 / 1.41 x 6.77 / 2.82 x 3.39 / 2.82 x 6.77mm
Font B: 0.99 x 2.40 / 0.99 x 4.80 / 1.98 x 2.40 / 1.98 x 4.80mm
CHARACTER SET 95 Alphanumeric
18 International
128×43 GraphicBarcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar

Two dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology
PRINT SPEED Max. 250mm/sec
INTERFACE Built-in USB interface + another selection: parallel, powered USB, Ethernet, wireless
PAPER SPECIFICATION
DIMENSIONS 79.5 ? 0.5mm x 83mm
PAPER ROLL Drop in
SENSORS Paper end and Paper near end
POWER CONSUMPTION Approx. 2.0A (mean)
POWER 100 ? 240V AC, 50/60 Hz
POWER SUPLY External PS-180
D.K.D. FUNCTION 2 drivers
RELIABILITY
MTBF 360,000 hours
MCBF 65 million lines
AUTOCUTTER 1.7 million cuts
PRINTER OPTIONS
COLOUR Epson Dark Grey
EMI STANDARD AS/NZS CISPR22 Class A
OVERALL DIMENSIONS 125mm (W) x 194mm (D) x 114mm (H)
WEIGHT 1.7Kg
